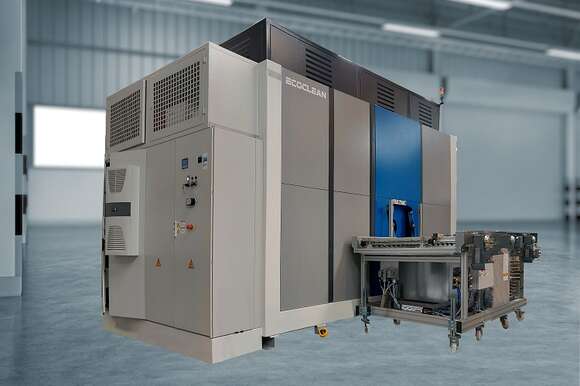

![EcoCstretch - Customized solvent cleaning solution](/fileadmin/_processed_/a/a/csm_EcoCstretch_1_108ed3dad8.jpg)
EcoCstretch – The customized solution for solvent cleaning applications
The diversity of industrial products is the result of different manufacturing concepts. Customized solutions are essential to ensure efficiency and quality. A key step in the process chain is the cleaning of components, the requirements of which vary according to size, geometry and throughput. Our flexible modular system offers individual solutions for different cleaning tasks - regardless of the industry.
The EcoCstretch cleaning system for hydrocarbons or polar solvents (modified alcohols) operates under full vacuum and fits seamlessly into the existing product portfolio between EcoCcore and EcoCduty. The modular design allows the EcoCstretch to be presented in two different system sizes and to be flexibly adapted to customer-specific requirements thanks to two different working chamber diameters.
The EcoCstretch is equipped with two flood tanks as standard. If required, a third flood tank can be
added, e.g. for additional preservation tasks. The cleaning system can be equipped with various
options to provide a tailor-made solution for different component cleaning tasks.
Your benefits
Flexibility to meet your needs
- Flexible use under full vacuum with hydrocarbons or modified alcohols
- Requirement-specific heating capacity of the distillation & flow rate capacity of the flood pumps
- Modular design with two flood tanks
- Customizable loading concepts for individual requirements
High cost-efficiency
- High capacity and performance with expansion of batch size, weight and throughput
- Long service life: powerful filter unit reliably removes particulate impurities from the solvent
- Accelerated cleaning process: powerful, frequency-controlled pumps minimize unproductive downtimes
- Energy-efficient heating of the flood tanks through heat recovery
- Reduction of heat loss through a tank partition in two flooded tank chambers
Reliable cleaning quality
- Improved degreasing performance: innovative pre-steam degreasing minimizes oil build-up in the flood tank
- Full-flow filtration ensures reliable fulfillment of high cleanliness requirements

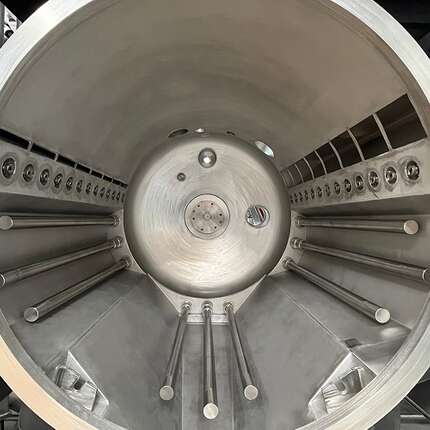

- Horizontal cylindrical flood tanks prevent the formation of dirt pockets
Proven system operation
- Environmentally friendly, virtually emission-free system technology

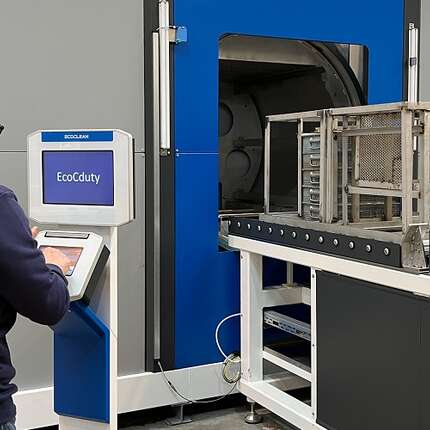

- Simple and safe system operation: 7-inch color display with self-explanatory pictograms
- Ease of maintenance: large maintenance openings ensure quick access to service-relevant components
