Innovative & environmentally friendly cleaning

EcoCsteam

Surface Processing with steam vapour

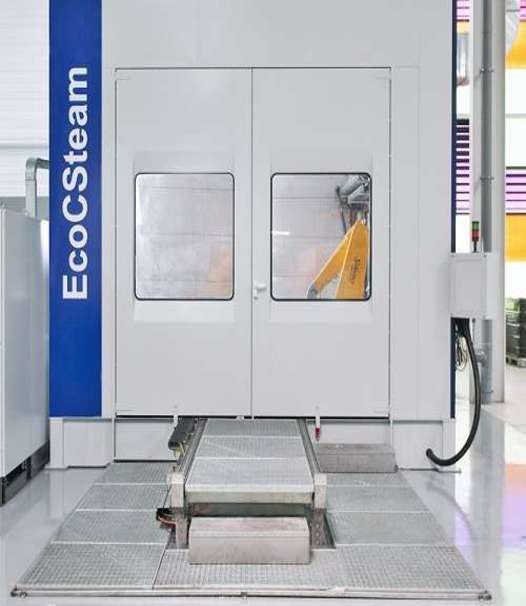

EcoCsteam® – Innovative & environmentally friendly cleaning

Based on the high cleaning power of saturated steam vapor, the EcoCsteam technology patented by Ecoclean is able to deeply and rapidly clean surfaces of any type of material – without using any detergents.

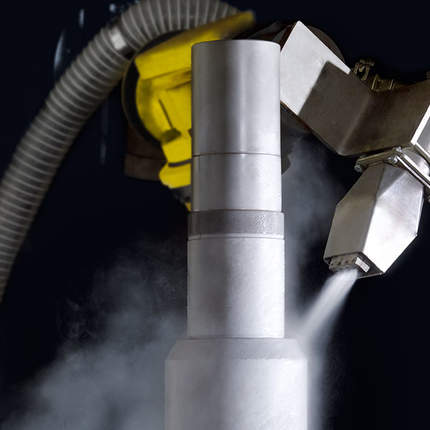

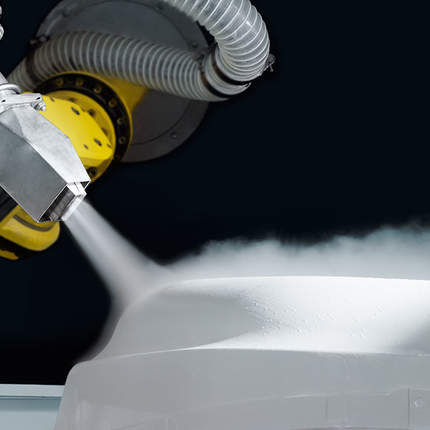

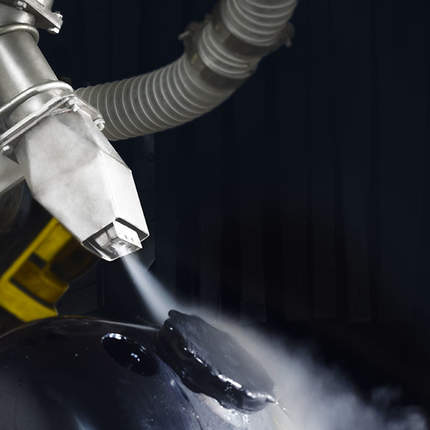

The process combines high velocity blown air and steam vapor. The air is heated up and is blown around the vapor jet. Because of the air velocity and the steam characteristics, the two media do not mix with one another and the air acts as a protection for the steam flow which is totally used for cleaning.

The new vapor generation: Continuous flow water heater

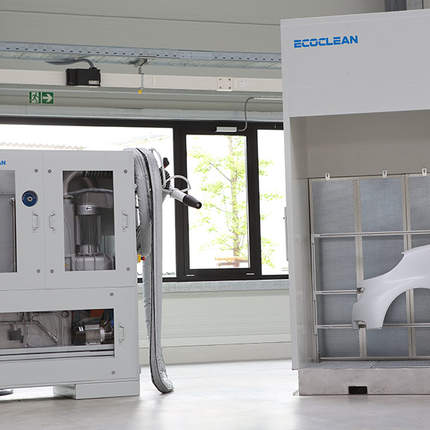

Developed with vapor specialists, Ecoclean offers the latest generation of vapor production without a boiler. The continuous flow water heater system offers the best efficiency in vapor production compared to standard units and the best vapor quality.

Water flow, steam flow and heating power are permanently controlled and adapted by the EcoCsteam PLC control system.


Fields of Applications The EcoCsteam process can be used for a huge variety of applications – with regards to parts as well as contamination. Depending on the workpiece dimensions, its material and the cleanliness requirements, the appropriate EcoCsteam tool is selected and the final process determined. The EcoCsteam process can be successfully used, e. g.

  • for heavy parts cleaning, e. g. wind power gear boxes, locomotive engine blocks and bogies, heavy marine engines, slewing rings
  • for cleaning of mechanical parts, e. g. automotive parts (cylinder heads, housings, camshafts, connecting rods), stamped parts
  • for plastic parts cleaning, e. g. plastic containers, composite parts
  • for continuous cleaning of profiles
