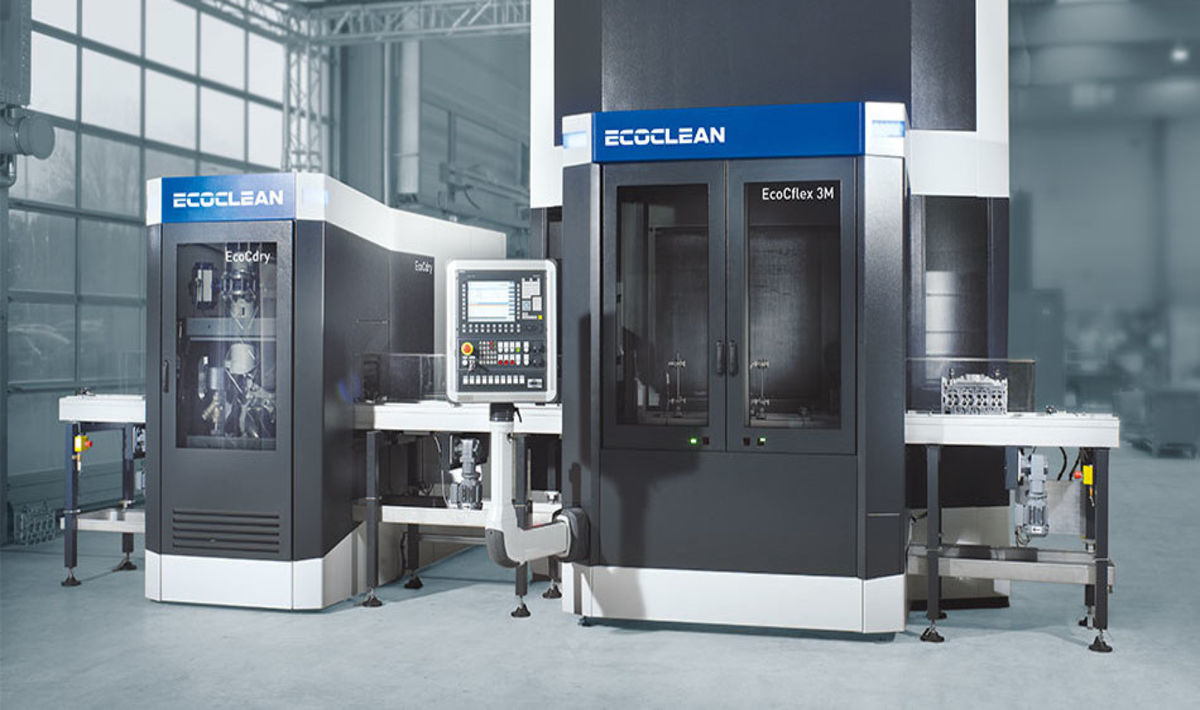

EcoCdry – Highly efficient vacuum dryer for the special drying of scooping components

The highly efficient vacuum dryer EcoCdry was developed to use the cycle time of flexible cleaning systems at a maximum for the cleaning process. EcoCdry allows the drying of workpieces with very high residual moisture reliably and much faster. For this purpose, the vacuum dryer is extended with a storage tank which is evacuated in the non-productive times. With a workpiece specific suction mold, residual liquids can then abruptly be drawn down from the component. It then only needs the remaining vacuum to be generated, in order to obtain completely dry workpieces.

Process

  • Highly efficient vacuum dryer for the special drying of scooping components
  • Pulse-like suction of liquids and simultaneous evacuation
  • Elimination of an upstream blowing unit in the EcoCflex 3 possible
  • Workpiece only slightly cools down before vacuum drying
  • Vacuum is generated in the non-productive times in the storage tank
  • Significantly reduced cycle time by pre-stressed storage tank

Equipment features

  • Loading via roller conveyor, gantry or robot possible
  • Various vacuum pumps optionally selectable
  • Storage vessel mounted directly to the process chamber or up to 10 meters away
  • Compact Plug & Play unit for easy retrofit to existing cleaning systems

Advantages

  • Short processing times from 1.5 to 3 sec.
  • Less cleaning effort through self-cleaning of the process chamber
  • High process reliability and availability through simple system configuration
  • Approximately 65% more energy efficient than compressed air blowing combined with conventional vacuum drying
  • No more pressure fluctuations in the customer's compressed air system
  • Easy to retrofit at any time
